12V CARAVAN LITHIUM UPGRADES
THE 12V LITHIUM AUTO ELECTRICAL EXPERTS
12V, The most common caravan off-grid upgrade, there's no system to Big or too small for the auto electrical experts at Ace Off-grid, we can tailor a system to match your exact power requirements, our Lithium technicians are the most knowledgeable specialists in Perth, from simple lithium upgrades to extend your vans Off Grid Capabilities to full Off Grid systems capable of powering your entire caravans 240v system through a automatic transfer inverter system, solar systems tailored to allow for extended air-conditioning run time. all our systems are fully integrated into the existing 240v system and signed off by fully licenced in house 240v electricians
LINSEY'S CARAVAN LITHIUM CONVERSION

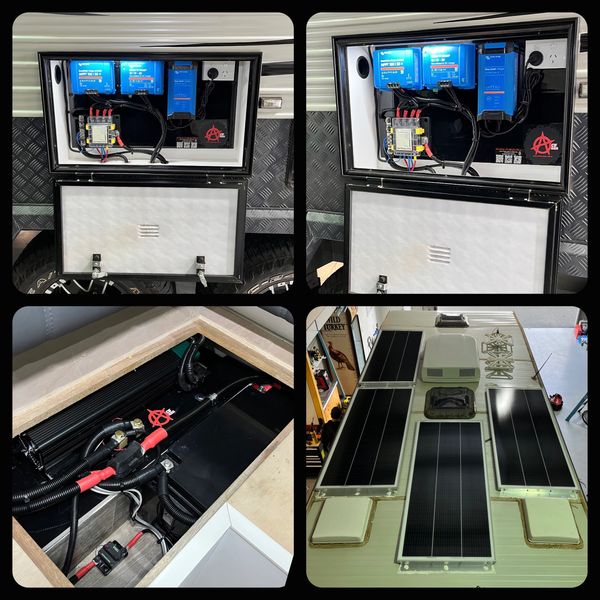

We had Linseys Van in for a Full Lithium upgrade this week, we’d originally planned to put the battery management system internal but after a second look we couldn’t pass up the opportunity to make use of this empty external hatch & it couldn’t have turned out better
We’ve relocated & upgraded his batteries to a cool 400ah of lithium power

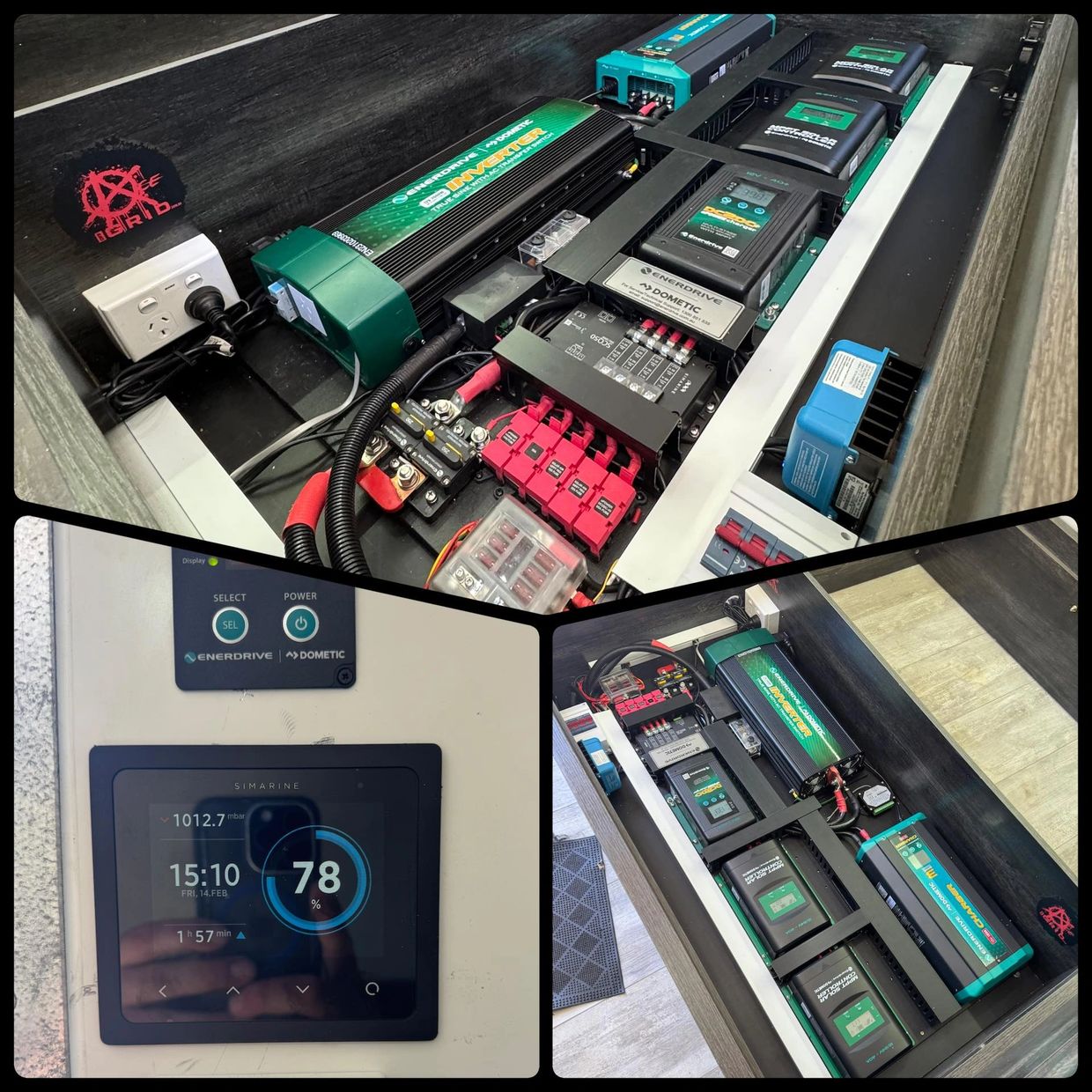

For running the A/C and those heavy loads we’ve installed a 2600w Enerdrive inverter system with automatic transfer for true off-grid power
For the battery management system we’ve got a 50a Victron Smart solar regulator, 30a dc-dc charger, 30a 240v smart charger & a Bluetooth battery monitor, all these devices can be individually monitored and controlled via the Victron connect app for absolute efficiency & control
Powered by 800w of fixed shingled solar panels, which outperform you’re older solar technology, even in low light conditions he won’t be lacking power
Supplied with a 5 year warranty and 5 year workmanship guarantee this upgrade will stand the test of time
GEOFF'S EXPLOREX LITHIUM UPGRADE
GEOFFS EXPLOREX BACK AGAIN
Geoff had his Explorex back in yesterday for another off-Grid upgrade

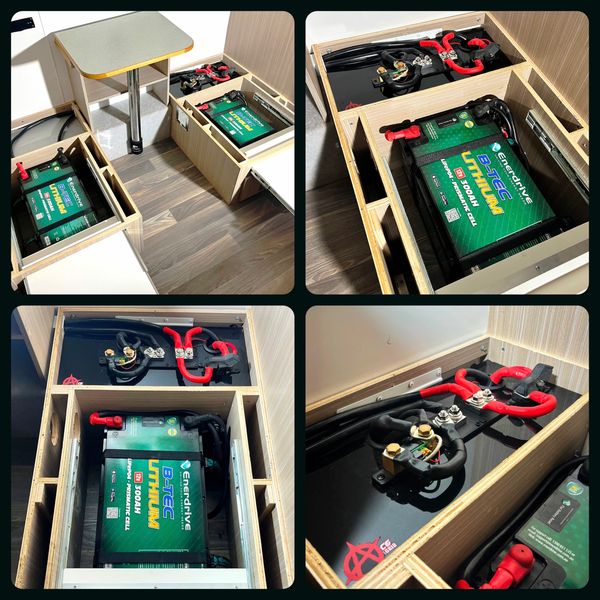

This time we squeezed in another 300ah Enerdrive battery, bringing his total to 600ah!!!
As we had to fit 2x95mm2 cabling to each battery (200mm2) at equal size and equal length for perfect equalisation and ZERO volt drop we opted for a custom distribution board to hide away the excess
If you’ll remember back in November we fit Geoff’s van out with a victron battery management system and a little more than 1.2kw of solar,
that’s a beautiful 80amps solar charge and a whopping 110amps driving in the sun
(Now 140a on grid in sun)
Geoff has his eyes set on a new A/C unit and we look forward to hearing how he’s able to run it indefinitely
Next we aim to power Chernobyl
Thanks again Geoff,
always a pleasure and a life time client, we look forward to your next off-Grid upgrade
Professional Electrical Services for Your Home and Business
MATTS 600AH LITHIUM CONVERSION
MATTS 600AH LITHIUM CONVERSION
MATTS 600AH LITHIUM CONVERSION
We’ve just completed Matthews 600ah Full Off-Grid upgrade, and it couldn’t have turned out better.
The install:
600AH of lithium Battery power
We’ve got a full Victron battery management system under the hood
800w of shingled solar cells
100/50 Victron smart solar MPPT regulator
30amp Victron smart DC-DC Charger
A 3000w Victron inverter powering the entire van with automatic transfer, with a 120amp 240v Lithium charger
And the Brains to this braun, weve got the victron cerbo gx running a victron touch 50 display
Which allows for….
Comprehensive Battery Monitoring
Solar monitoring, Solar yield & 30 day history
Inverter switching & monitoring
Water tank Level Monitoring
Temperature monitoring & thermo fan activation keeping this system as cool as possible
All units have Bluetooth capabilities as well as connectivity with the Victron Portal meaning everything you see on the screen you can wirelessly view on your phone or computer
FROM ANYWHERE IN THE WORLD!!!
So in the highly unlikely case that you come across an issue, no matter where you are, the experts at Ace off-Grid can remotely monitor, diagnose, repair & update your system
Paired with a 5 year warranty & Ace’s 5-year Workmanship guarantee,you can't go wrong
DAVES 400AH LITHIUM SYSTEM
MATTS 600AH LITHIUM CONVERSION
MATTS 600AH LITHIUM CONVERSION
We Recently Completed Dave’s much anticipated 400ah Lithium system and as usual, it went off without a hitch
For this particular upgrade we’ve got…
2 x Slim ATG 200ah Lithium batteries
4 x 200w shingles solar panels
1 x 30a victron smart charger
1 x Victron 100/50 MPPT Solar charger
1 x Victron smart dc-dc charger
1 x Victron smart Bluetooth monitor
Victron chargers and battery monitors are all Bluetooth ready allowing for monitoring of
Battery percentage & Time to go
Monitoring of Solar Yeild & 30 day history
Vehicle charge monitoring
240v Charge and monitoring
For the 240v inverter system we’ve got a 2600w Enerdrive inverter with automatic transfer allowing for the entire caravan including the aircon to be effortlessly and automatically powered by the vans battery system or 240v mains
Majority of this system Carries a 5 year warranty
Aswel as our 5 year workmanship guarantee
